TECHNICAL DATA

ES

Hose size

3"4S

Swaging range(mm)

Φ 6-172

Master die shoe length(mm)

85

Standard voltage

380V/50Hz

Motor power

1.5kW

Optional voltage &motor

220V/1.5kW

Pump(l/min)

6L

Number of swagings/hour

60

Noise level (dB)

40

Max opening(mm)

Φ+28mm

Crimping force(kN)

8610

Electric limit switch

√

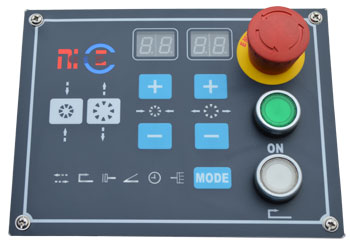

Electronic control

√

Electric pedal

√

Manual change

√

Dlmenslons LxWxH(mm)

685x530x650

Weight without oil

70Kg
